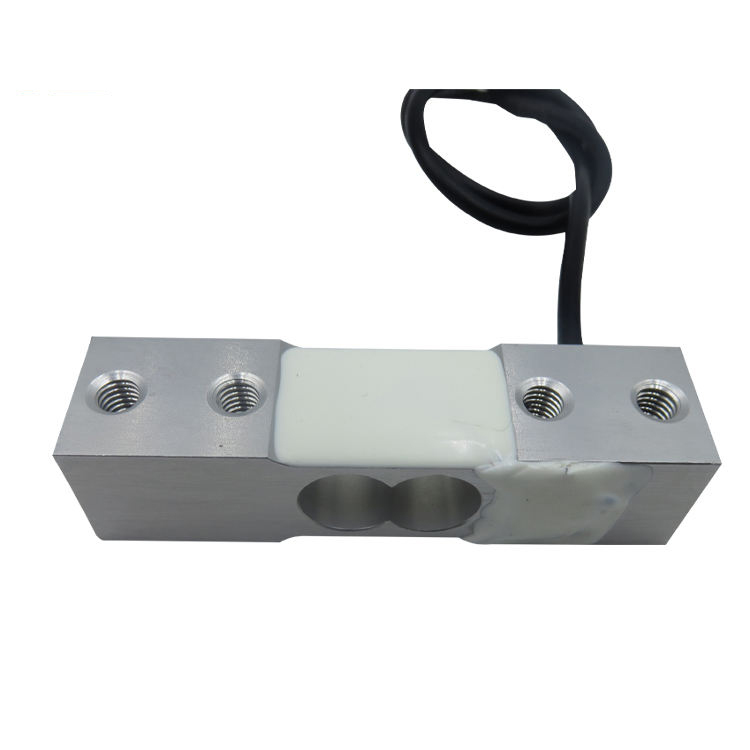

Truck 50 Ton Weighing Scale Load Cell
Load cells are used in smart devices, smart vending cabinets, smart garbage bins, weight detection equipment, etc., and are easy to install and operate.
|
|
|
Rated Output
|
mv/v
|
2.0±0.2
|
|
Non-linearity
|
%F.S
|
0.03%F.S
|
|
Hysteresis
|
%F.S
|
0.03
|
|
Repeatability
|
%F.S
|
0.03
|
|
Creep
|
%F.S/3min
|
0.03
|
|
Temp.effect on zero
|
%F.S/10℃
|
0.03%F.S
|
|
Temp.effect on span
|
%F.S/10℃
|
0.05%F.S
|
|
Zero balance
|
mv/v
|
±0.05
|
|
Input impedance
|
Ω
|
405±6
|
|
Output impedance
|
Ω
|
350±5
|
|
Insulation resistance
|
MΩ
|
≥2000(100VDC)
|
|
Recommended excitation voltage
|
VDC
|
3~12
|
|
Allowed excitation voltage
|
VDC
|
3~12
|
|
Compensated temp.Range
|
℃
|
-10℃~+40℃
|
|
Operating temp.Range
|
℃
|
0℃~+40℃
|
|
Safe overload
|
%F.S
|
120
|
|
Ultimate Overload
|
%F.S
|
150
|
|
Connection
|
Excitation: Red:+ Black:-
|
|
Signal: Green:+ White:-
|
Packing & Transport
FAQ
Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.
Q: What detailed information do I need to provide if I want to place an order?
We need to know the following information:
Capacity, Usage and other related parameters you need.
Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.
Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.
Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.
Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.
Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
