Aluminium Alloy Compression Load Cell

Λεπτομέρειες προιόντος:

Τόπος καταγωγής:	Κίνα
Μάρκα:	RUIJIA
Πιστοποίηση:	CE
Αριθμό μοντέλου:	RJ

Πληροφορίες λεπτομέρειας

Τόπος καταγωγής:

Κίνα

Μάρκα:

RUIJIA

Πιστοποίηση:

Αριθμό μοντέλου:

Προέλευση προϊόντος:

Κίνα

Πληρωμή:

100% πληρωμή πριν από την αποστολή

Ικανότητες:

60 κιλά

Υλικό:

Κράμα αλουμινίου

Διάσταση:

Φ84*12,7*10mm

Ονομαστική έξοδος:

1,0 mV/V±15%

Επισημαίνω:

High Light

Επισημαίνω:

Aluminium alloy load cell sensor

Compression load cell with warranty

Durable load cell for industrial use

Πληροφορίες συναλλαγών

Ποσότητα παραγγελίας min:

Τιμή:

USD5 ~45/piece

Συσκευασία λεπτομέρειες:

Τυπική συσκευασία εξαγωγής

Χρόνος παράδοσης:

5-8 ΕΡΓΑΣΙΜΕΣ ΗΜΕΡΕΣ

Όροι πληρωμής:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Δυνατότητα προσφοράς:

1000 Τεμάχια/Τεμάχια ανά μήνα

Περιγραφή προϊόντων

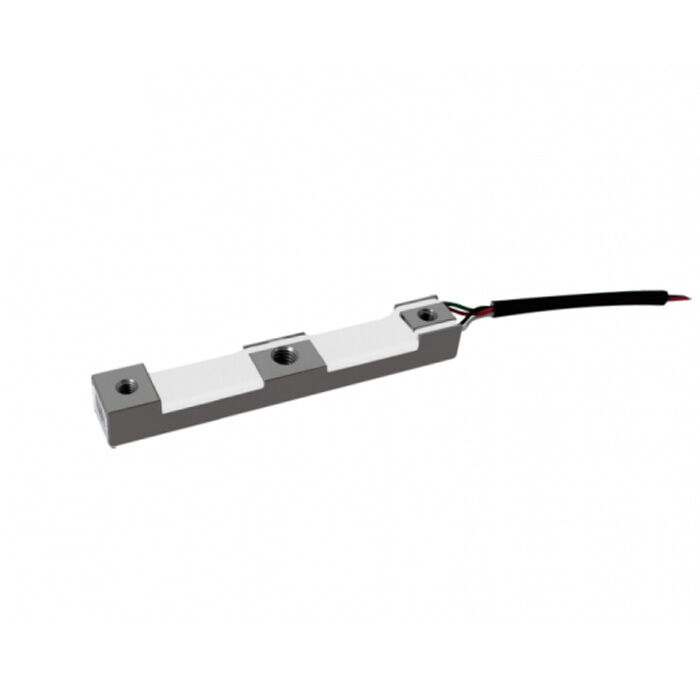

Aluminium Alloy Compression Load Cell

Aluminium Alloy Compression Load Cell

The NY29 is aluminium alloy material load cell,the surface is anodized and coated with white glue that protects sensors against water and erosion.The load cell is high precision that can apply for multidirection force measuring systems,flat weighing and force measurement in confined spaces.

Key Feature:

Aluminium alloy

Capacity: 60kg

Precision: 0.1%R.O.

Protection class: IP65

Rated Output : 1.0 mV/V±15%

Usage & Application:

Mainly used in flat weighing and force measurement in confined spaces.

Dimension:

Aluminium Alloy Compression Load Cell 0

Specification:

Rated Capacities	60kg
Rated Output	1.0 mV/V±15%
Zero Balance	±0.0500mV/V
Non-linearity	0.1 %R.O.
Hysteresis	0.1 %R.O.
Repeatability	0.1 %R.O.
30mins Creep	0.1 %R.O.
30mins Return	0.1 %R.O.
Safe Overload	150 %R.O.
Ultimate Overload	200 %R.O.
Input Impedance	1000±10 Ω
Output Impedance	1000±10 Ω
Insulation Impedance	≥3000 MΩ/(50VDC)
Recommended Excitation	5~12 VDC
Maximum Excitation	15 VDC
OperatingTemperatureRange	-20~60 ℃
Construction	Aluminum Alloy
Protection Class	IP65
Cable	Φ4×0.22m
Recommended Platform Size
Mode of Connection	Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-)
